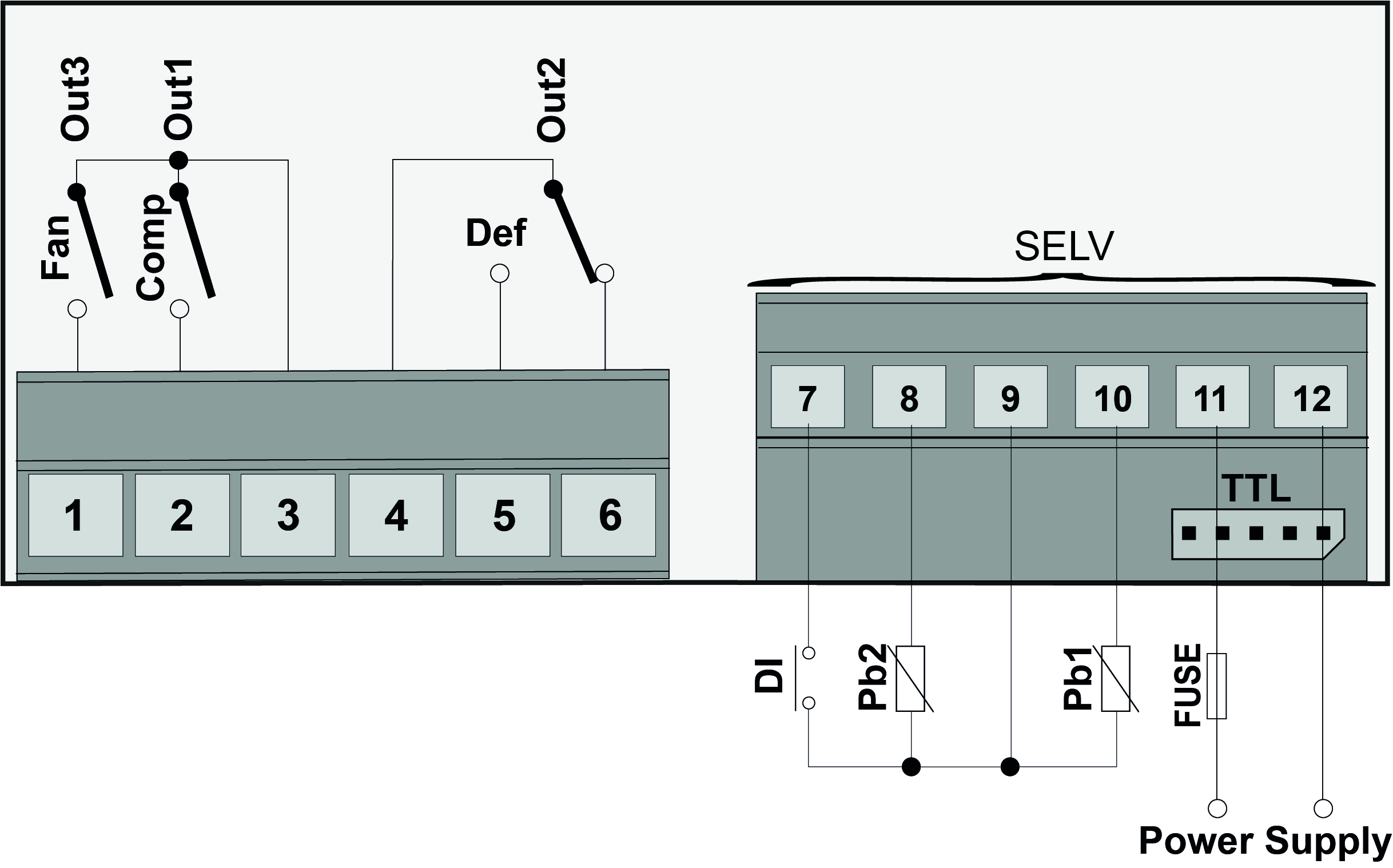

- Product diagrams
- Digital Academy
Part Number
IDN974PED303000
Operating Temperature
-5...55°C
Storage Temperature
-30…85°C
Ambient Humidity
10…90% RH (non-condensing)
Power Supply
12 Vac-dc
Power Draw
5 VA - 2,5W
Display Range
-99,9…+99,9 °C
-999…+999 °C
-999…+999 °C
N. Analogue Inputs
2
Analogue Inputs
2x PTC or NTC or Pt1000
N. Digital Inputs
1
Digital Inputs
1x SELV
N. Digital Outputs
3
Digital Outputs
1x SPST 2Hp 12(8)A 230Vac
1x SPDT 0,5Hp 8(4)A 230Vac
1x SPST 5(2)A 230Vac
1x SPDT 0,5Hp 8(4)A 230Vac
1x SPST 5(2)A 230Vac
Display
LED 3 digits + sign
Resolution ( 0.1°C with decimal point )
0,1°C
Measurement Range
NTC: -50,0…+110,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
PTC: -55,0…+140,0 °C
Pt1000: -55,0...+150,0 °C
Accuracy
NTC: better than 0,5% of full scale + 1 digit
PTC: better than 0,5% of full scale + 1 digit
Pt1000 [-55,0…+70,0°C]: better than 0,5% of full scale + 1 digit
Pt1000 [+70,0…+150,0°C]: better than 1% of full scale + 1 digit
PTC: better than 0,5% of full scale + 1 digit
Pt1000 [-55,0…+70,0°C]: better than 0,5% of full scale + 1 digit
Pt1000 [+70,0…+150,0°C]: better than 1% of full scale + 1 digit
Connectivity
TTL port for connection to Unicard or ModBus monitoring device
N. Serial Ports
1
Serial Ports
1x TTL
Installation
panel, 71x29mm
Accessories
Unicard USB/TTL
Dongle BTLE/TTL
Dongle BTLE/TTL
Functions
Easy Map, Buzzer
Weight (g) Net
190
Width (L) Net
81mm
Height (Ht) Net
35mm
Depth (P) Net
60mm
Weight (g) Packaging
235
Width (L) Packaging
130mm
Height (Ht) Packaging
90mm
Depth (P) Packaging
50mm
Offer sustainability
Sustainable offer status
Product environmental profile
Product end of life instructions
The Environmental Data Program classifies and measures the environmental characteristics and footprint of products. The program aims to provide environmental data on products, using a fact-based methodology.
Environmental footprint
Carbon footprint (kg CO2 eq. Total Life cycle)
144
Environmental Disclosure
Use Better
Materials and Substances
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
Yes
EU RoHS Directive
Product compliant, please contact Technical Support
SCIP Number
a3874c2e-b1e0-4d2e-a78b-0e70ceebe450
REACh Regulation
Product compliant, please contact Technical Support
California Proposition 65
WARNING: This product can expose you to chemical including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Use Again
Repack and remanufacture
Circularity Profile
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
