One step beyond
for a sustainable refrigeration
More and more targeted applications
Plug-in coolers
Small food retail applications: bar, restaurants, convenience stores, bakeries, pastries, butcheries…
EWNext 1281 more I/Os
Enhancing efficiency for standard plug-ins
- Bottle coolers & frozen food display freezers

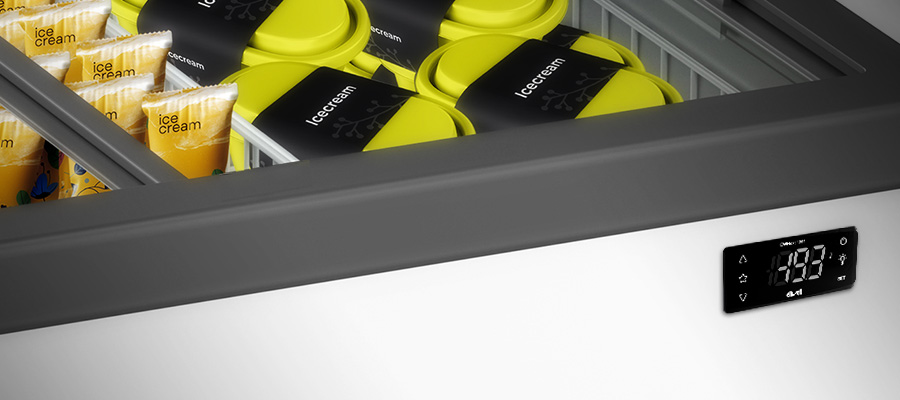

- Chest refrigerators

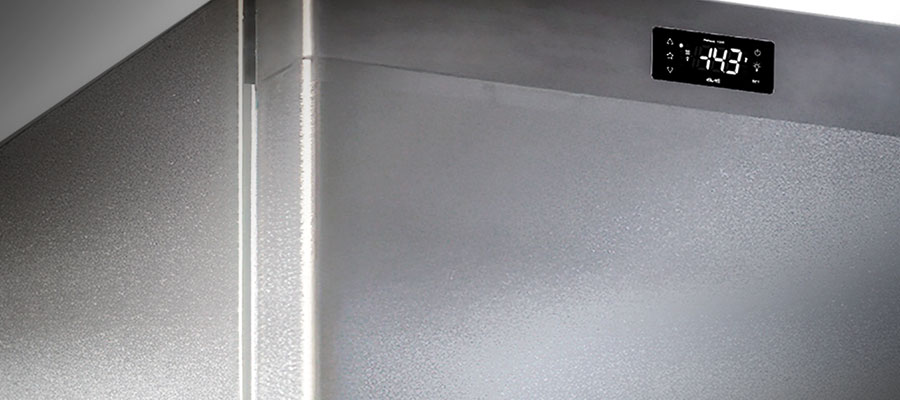

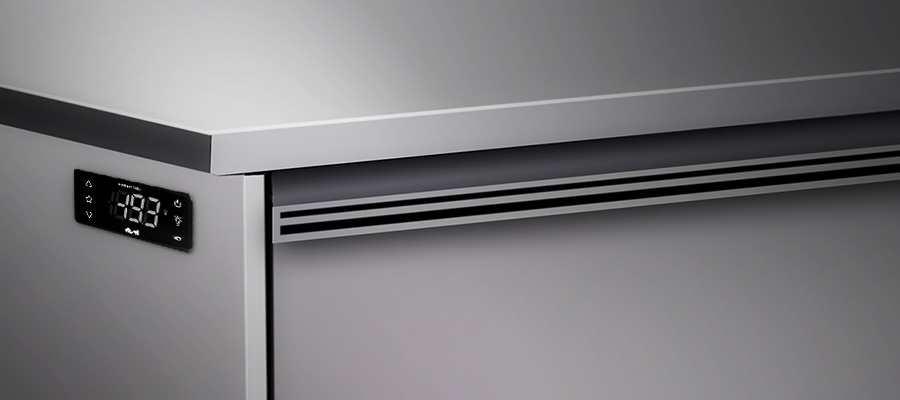

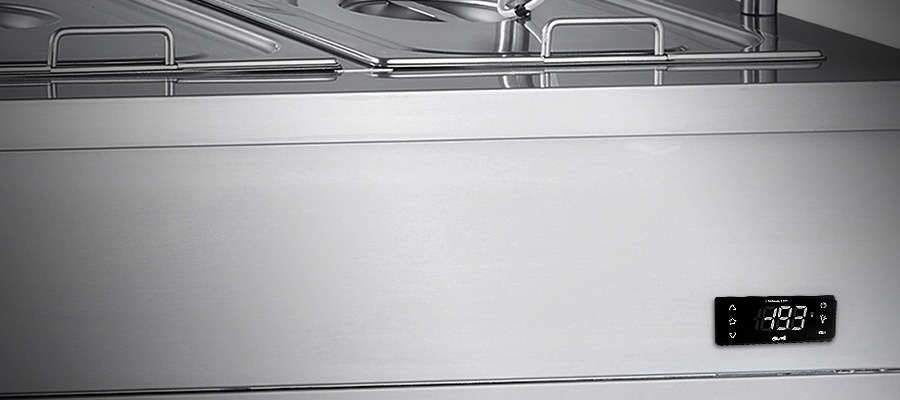

- Refrigerated cabinets & tables

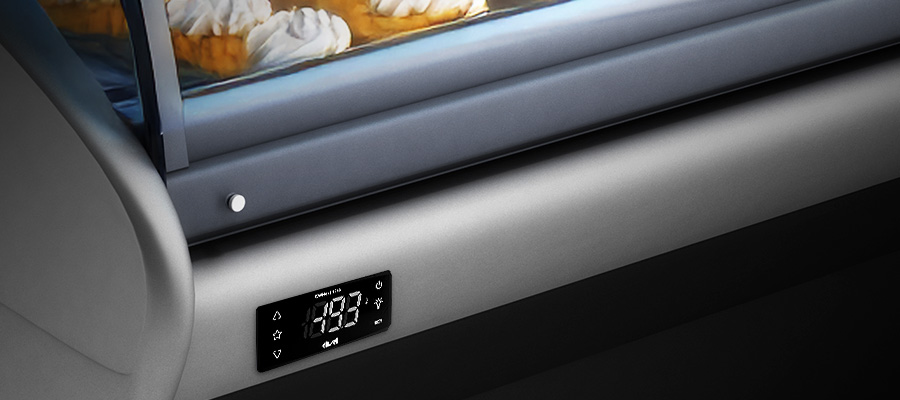

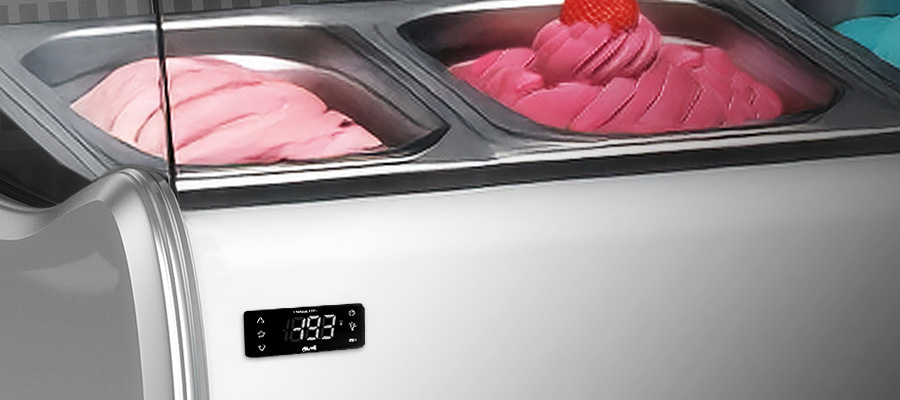

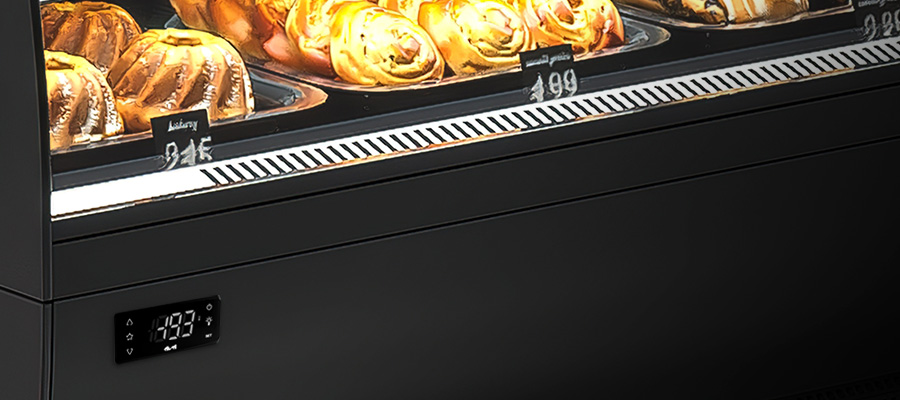

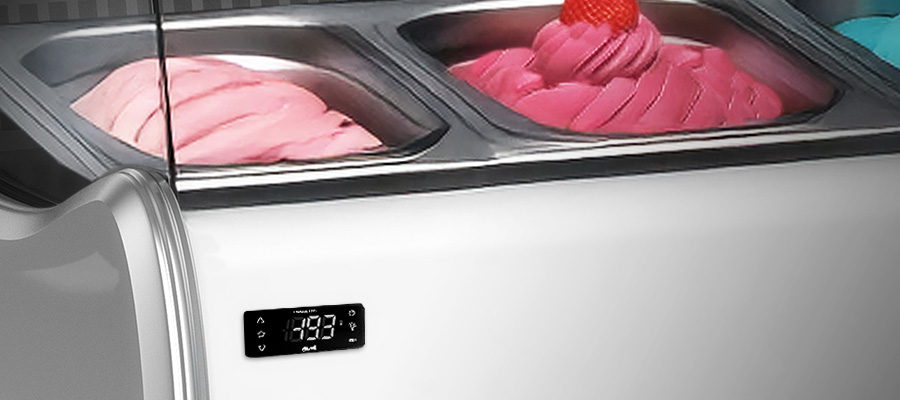

- Ice cream and pastry counters
EWNext 1385 more functionalities
New applications coverage
- Temperature and humidity food cabinets
- ULT Ultra Low Temperature freezers

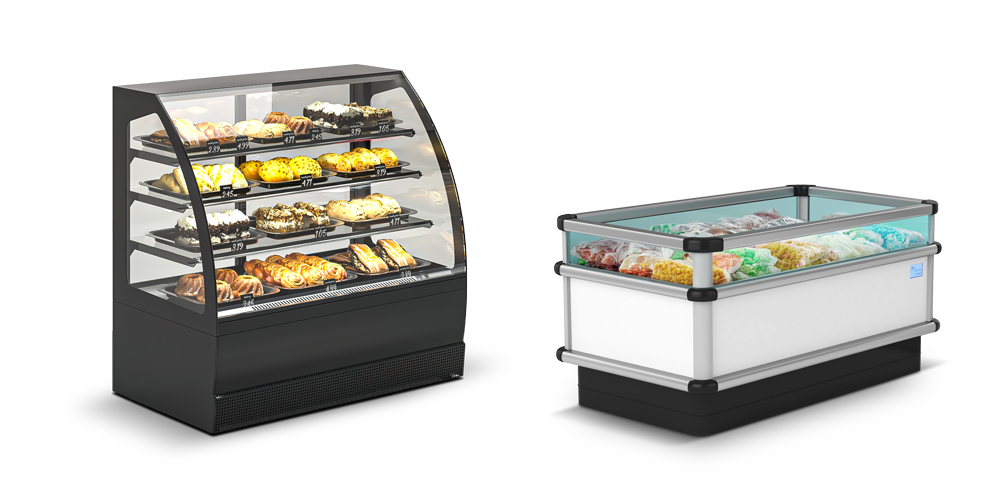

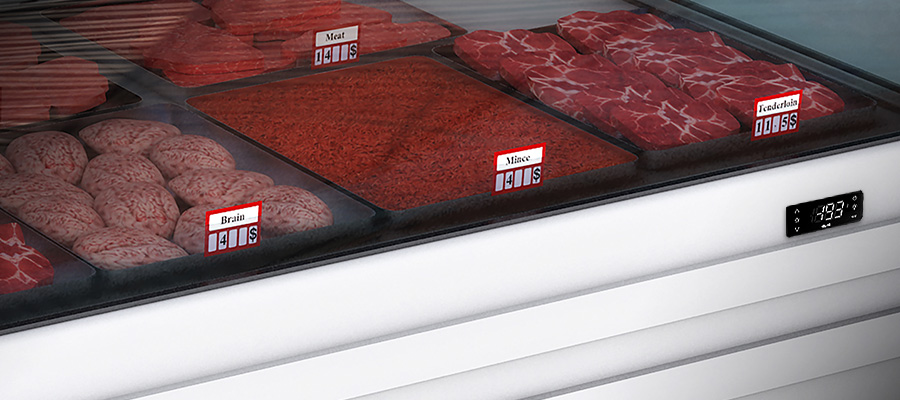

Plug-in and remote cabinets
Large food retail applications: supermarkets, refrigerated warehouses (food logistic, click & collect...)
EWNext 1281 more I/Os
Enhancing efficiency for standard plug-ins

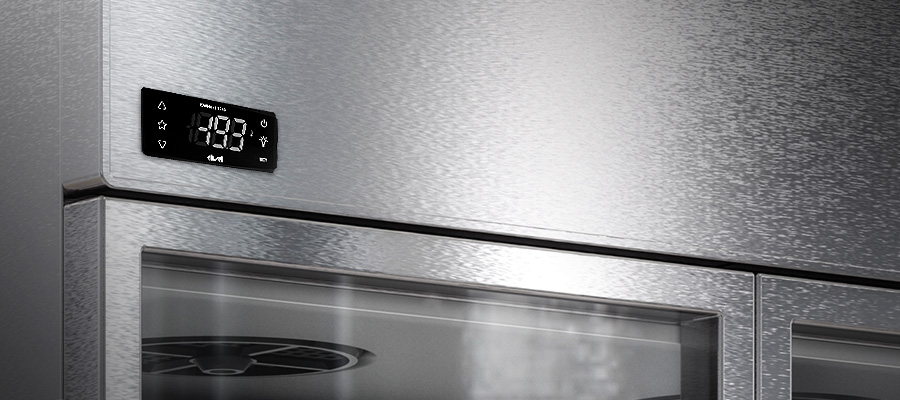

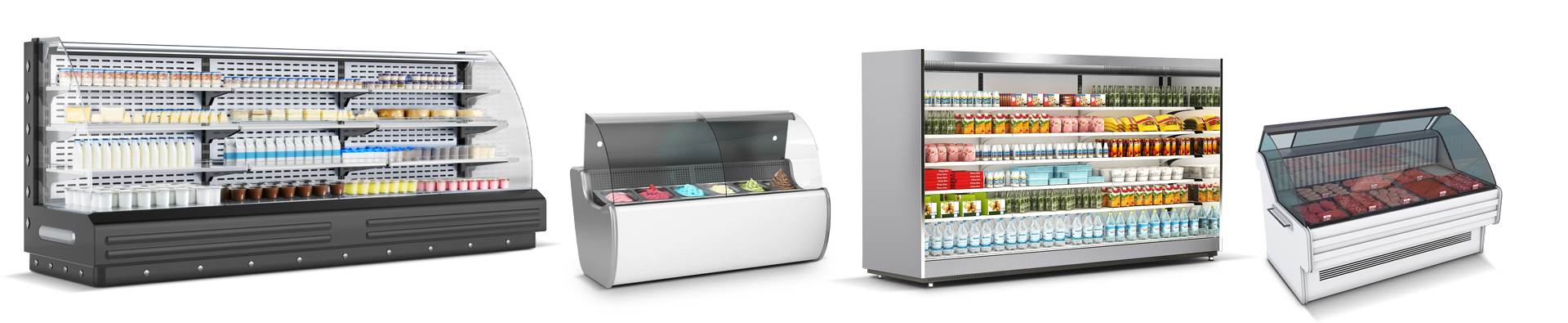

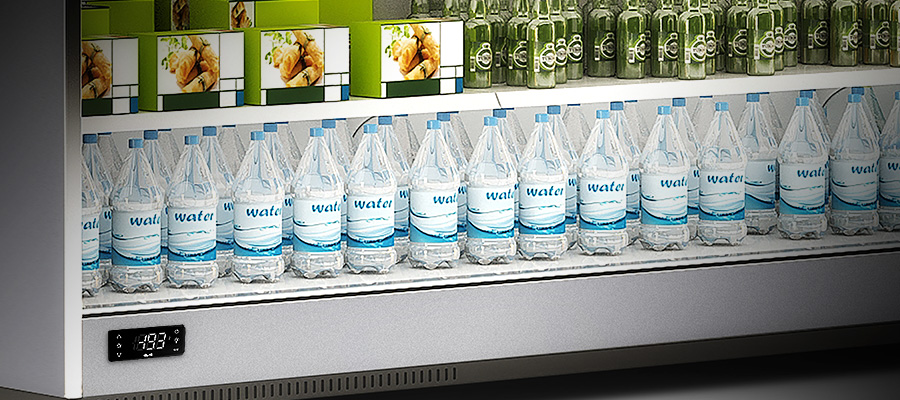

- Vertical and semi-vertical freezers and chillers
- Monoblocks

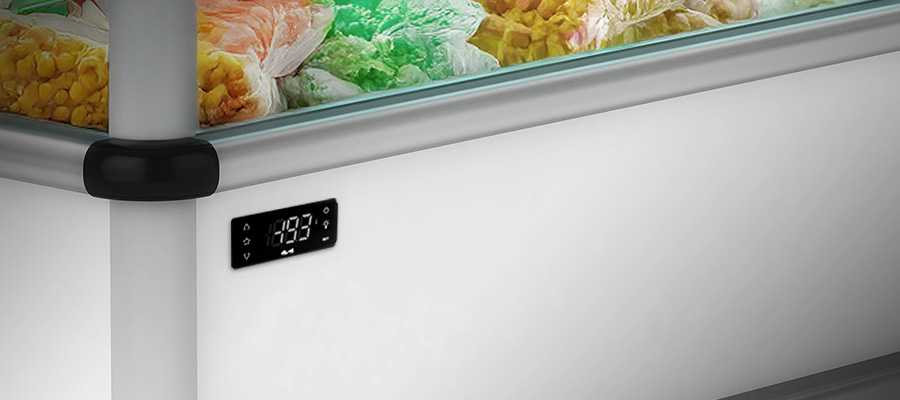

- Refrigerated islands
EWNext 1385 more functionalities
New applications coverage
- Serve over counters
- Remote refrigeration units
- Professional ice cream and pastry displaycases
- Remote refrigerated showcases

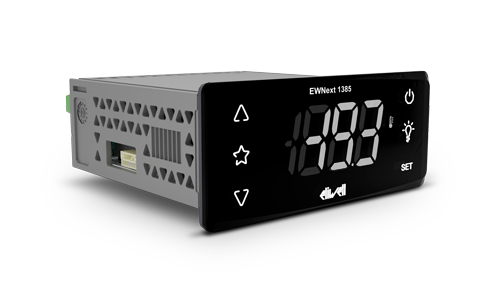

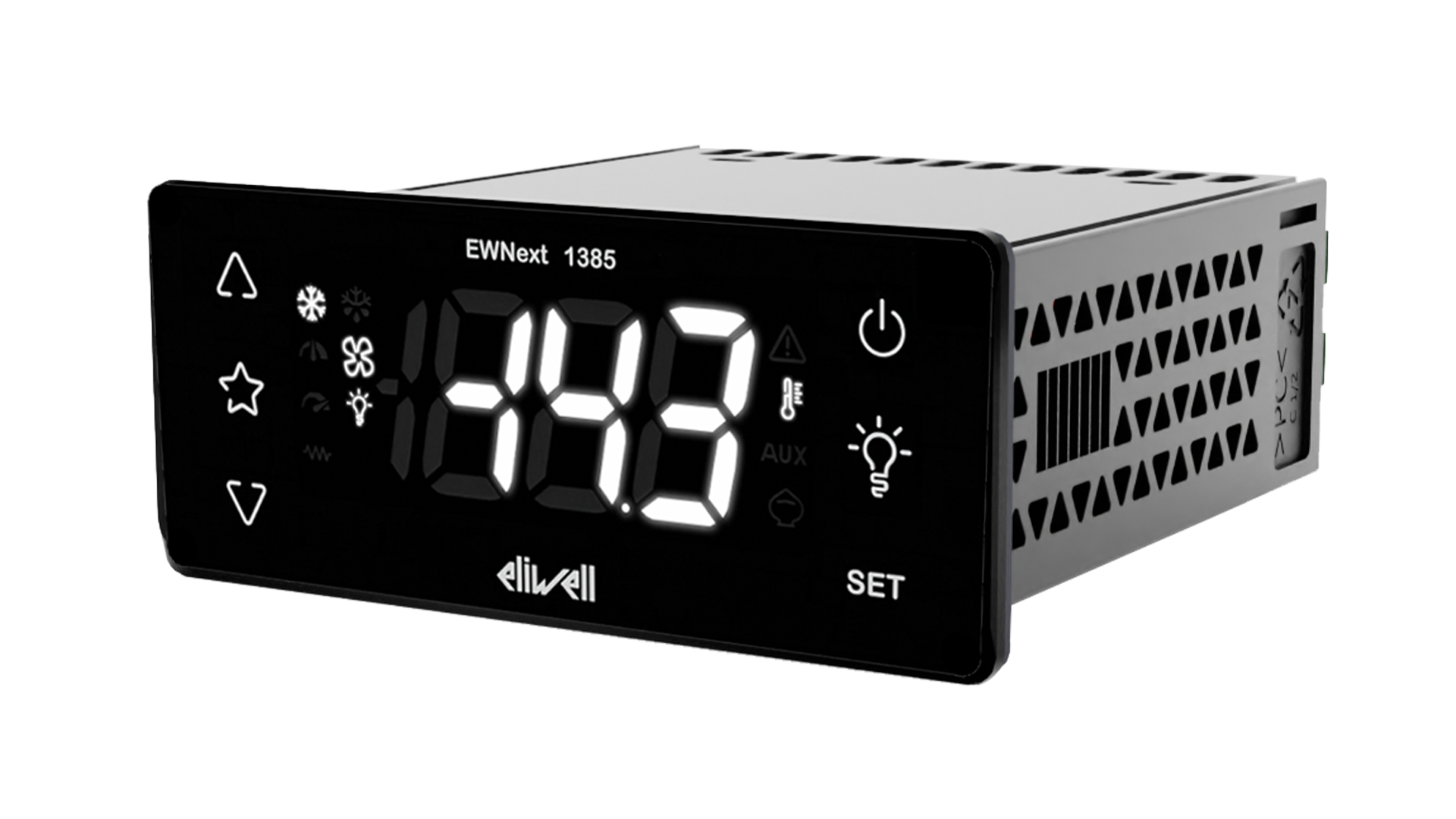

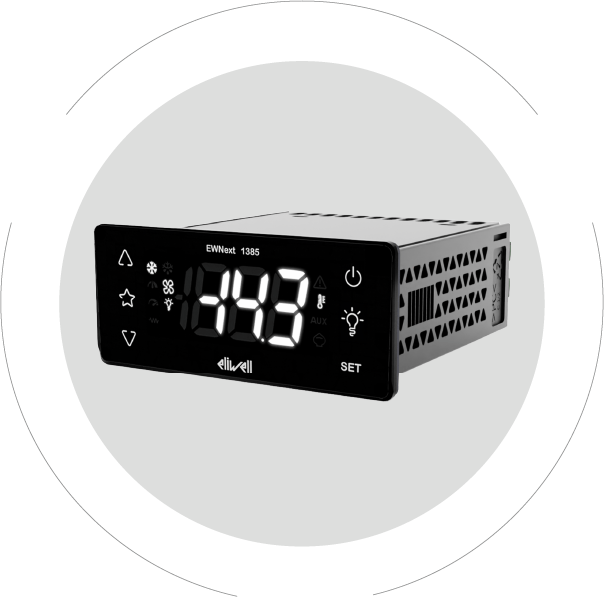

EWNext 1000 at a glance
Natural refrigerants ready
Suitable for low-GWP refrigerants, including A2L, A3-classified for plug-in coolers and CO2 for remote cabinets
Increased components life
LED lights and EC fans control thanks to inrush relay: 50 times longer lifecycle compared to standard relays
Less is more
Simple to install thanks to direct connection, avoiding additional wiring
Sustainable by design
Product design and components supporting cooler manufacturers to comply to the latest Energy Labelling and EcoDesing regulations PEP and EOLI certifications available
Sustainability
Efficiency
Powerful relays
Extend compressor life and reduce maintenance needs with Zero Crossing management
VSC compressor management
More analogue inputs with humidity management
Up to 3 temperature probes + 1 humidity or temperature probe
One model fits many applications
TEV management thanks to the field bus covering both plug-in and remote cabinets
Intelligent innovation
Modular defrost algorithm adapting regulation to application needs
Digitization
Easy commissioning
and data logging
Connectable via Bluetooth
to HACCP module
Stand-alone HACCP data logger for Cold Rooms and refrigerated cabinets

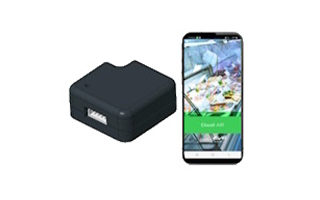

Eliwell AIR BT
Plug-n-play Bluetooth data-logging module
Wide connectivity options
Modbus RS485 embedded for connection to Eliwell Refrigeration Expert, TelevisGo
and third-party monitoring systems. Wi-fi ready with AIR Edge device
Connected solution pre-installed by OEM on cold room and refrigerated cabinets

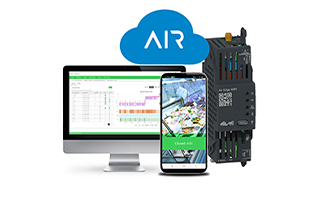

Eliwell AIR WiFi
App & Cloud solution for remote monitoring and maintenance of refrigeration equipment
Stand-alone / remotely accessible solution for small applications

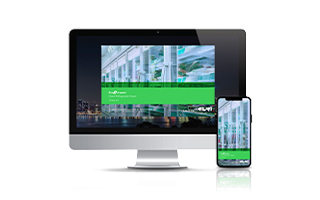

Refrigeration Expert XP
Remote monitoring and maintenance solution for small shops, restaurants, refrigerated warehouses
Redesigned Web Interface for Efficient Equipment Management

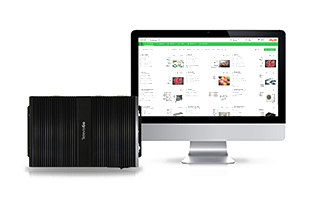

Eliwell TelevisGo
A responsive and efficient web platform offering easy access to equipment configuration, maintenance, with enhanced usability and customizable profiles.
EWNext range
| EWNext 900 | EWNext 1281 SBCY | EWNext 1385 SBCIL | |
|---|---|---|---|
| Power supply | 115 Vac, 230 Vac, 100…240Vac | 230 Vac | 100…240 Vac |
| Analogue / Digital Inputs | 2x NTC 1x DI or NTC - 1x DI on TTL 1x sync 1/2 Ice sensors |
3x NTC 1x DI or NTC 1x DI 1x DI on TTL 1x sync or DI - |
2x NTC 1x NTC or 4…20mA 1x DI or NTC 1x DI 1x DI on TTL - |
| Analogue Output/PWM | - 1x PWM open collector |
- - |
1x 0...10V 1x PWM open collector |
| Digital Outputs | 1x 1.5HP (70A Inrush 2500us) SPST 1x 8A SPDT 2x 5A (25A Inrush 2500us) SPST |
1x 1.5HP (70A Inrush 2500us) SPST 1x 10A (70A Inrush 2500us) SPST 1x 8A SPDT 1x 5A (25A Inrush 2500us) SPST |
1x 1.5HP (70A Inrush 2500us) SPST with Zero crossing 1x 1.5HP (70A Inrush 2500us) SPST 1x 8A SPDT 1x 5A (25A Inrush 2500us) SPST |
| Connectors | Screw or removable | Screw or removable | Screw or removable |
| Low Voltage Detector LVD | Optional | - | - |
| Buzzer | |||
| RTC | |||
| Embedded RS-485 serial | - | ||
| Serial port | 1x connection to RS-485 dongle, BT dongle or ECNext remote display |
1x connection to RS-485 dongle, BT dongle or ECNext remote display |
1x connection to RS-485 dongle, BT dongle or ECNext remote display |
| ECNext remote display | Optional | Optional | Optional |
| Field bus | - | - | |
| AIR connectivity | |||
| Depth | 60mm. Screw/75mm removable connectors with female | 89mm. Screw/removable connectors with female | 89mm. Screw/removable connectors with female |
| Show more | Show more |
Third Analogue Input or Buzzer as an alternative
